GoGold Announces Additional Positive Drilling at El Favor East











1,124 g/t AgEq over 2.0m within 18.8m of 203 g/t AgEq at El Favor East



GoGold Resources Inc. (TSX: GGD) (OTCQX: GLGDF) is pleased to release the results of 6 drill holes from the El Favor East deposit within Los Ricos North property.  Hole LRGF-21-118 intersected 2.0m of 1,124 g/t silver equivalent contained within 18.8m of 203 g/t AgEq.  See Table 1 for breakdown of silver and gold values.



“Our continued drilling program at El Favor East shows additional positive results.  Our program is also focussing on Gran Cabrera in the northerly section of Los Ricos North, and we expect to provide an update on that shortly,” said Brad Langille, President and CEO. “In addition to our drilling, we continue to work on consolidation of additional ground in Los Ricos South and expect to have an update on this in the coming weeks.”



Table 1:  Drill Hole Intersections



Hole ID Area / Vein From To Length1 Au Ag AuEq2 AgEq2
(m) (m) (m) (g/t) (g/t) (g/t) (g/t)
LRGF-22-115 El Favor East 51.0 53.8 2.8 0.36 75.7 1.37 102.5
and 194.4 196.3 2.0 0.37 127.0 2.06 154.9
and 345.1 346.0 0.9 0.19 120.9 1.80 135.0
LRGF-22-116 El Favor East 134.6 135.3 0.8 0.56 240.6 3.76 282.3
and 227.3 229.1 1.8 0.24 137.6 2.07 155.5
and 271.0 273.2 2.2 0.80 226.7 3.82 286.8
including 272.2 272.7 0.5 2.87 847.0 14.17 1,062.4
LRGF-22-118 El Favor East 223.0 241.8 18.8 0.62 156.4 2.71 203.2
including 233.7 241.1 7.4 1.50 344.5 6.09 456.9
including 238.2 240.2 2.0 3.59 854.5 14.98 1,123.8
LRGF-22-120 El Favor East 125.0 125.7 0.7 0.82 225.0 3.82 286.8
and 235.7 245.0 9.3 0.64 154.7 2.71 203.0
including 243.3 244.0 0.7 5.23 1,195.0 21.16 1,587.0
and 339.1 339.6 0.5 0.21 95.6 1.49 111.5
and 351.5 352.2 0.7 0.24 107.7 1.67 125.6
and 357.1 357.8 0.7 4.34 1,294.9 21.60 1,620.2
LRGF-22-122 El Favor East 190.9 195.4 4.5 0.27 75.8 1.28 96.3
and 271.1 273.0 1.9 0.49 83.6 1.60 120.3
including 272.1 273.0 0.9 0.90 152.8 2.94 220.6
LRGF-22-127 El Favor East 69.3 80.7 11.4 0.37 89.8 1.57 117.7
including 73.1 73.6 0.5 1.92 213.7 4.76 357.3
  1. Not true width
  2. AqEq converted using a silver to gold ratio of 75:1 at recoveries of 100%
  3. Holes LRGF-22-117, LRGF-22-119, and LRGF 22-121 did not intercept significant mineralization
  4. Holes LRGF-22-123 to 126 are pending assays.

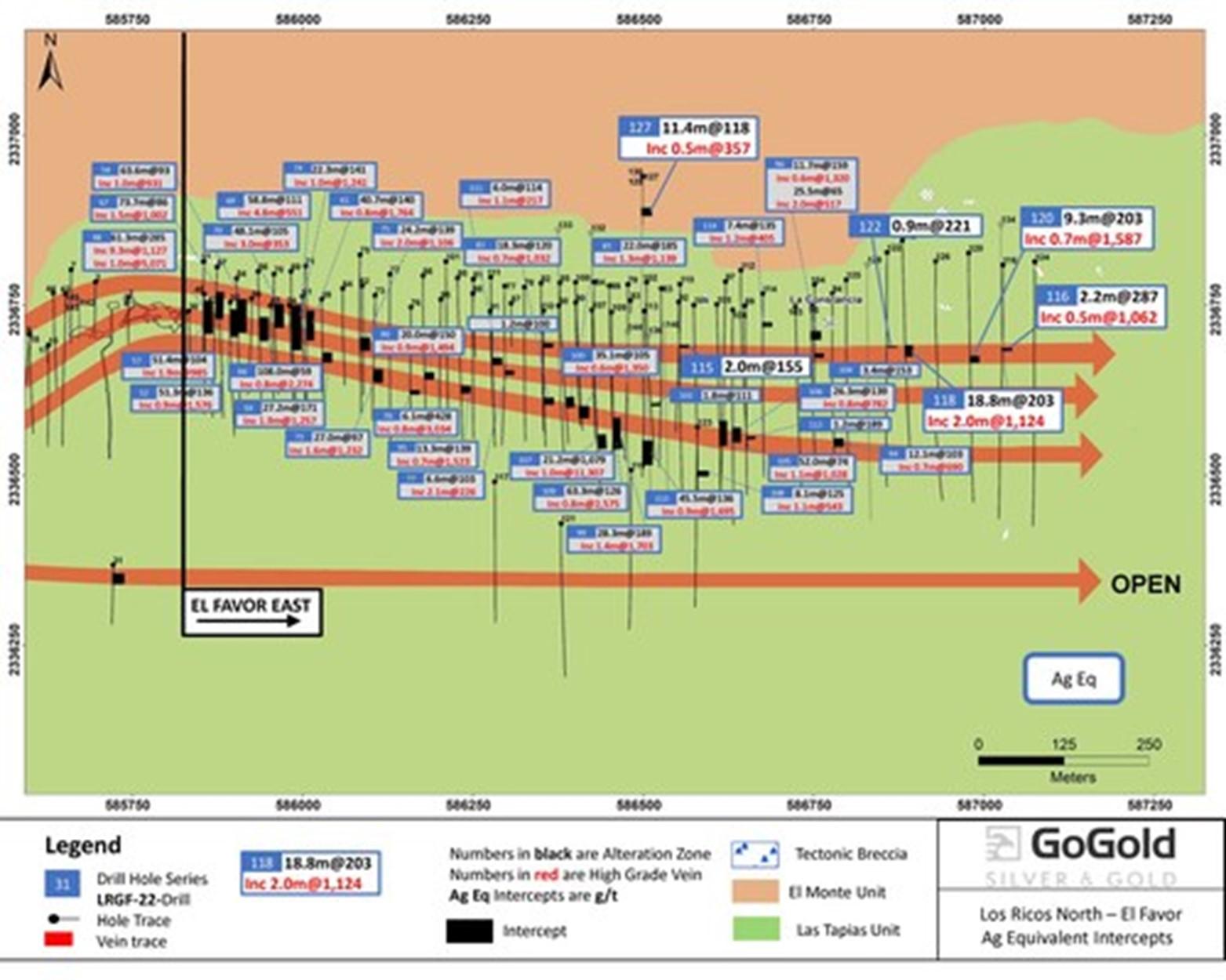

Figure 1: El Favor Drill Hole Locations





In early 2022, the exploration team began a systematic stepout drilling program to test the eastern strike extension of the El Favor deposit in the area between Discovery Hole 48 and the underground workings at the Constancia Mine. This area is known as the El Favor East zone, and the mapping and drilling program has extended the presence of mineralization 900m to the east of hole 48 (El Favor East zone discovery hole), as shown in Figure 1.  To date, approximately 800m of El Favor East has been drilled showing the strong mineralization.  The drill holes in this release were not included in the initial Mineral Resource Estimate for Los Ricos North released on December 7, 2021, hole LRGF-21-094 was the final drill hole included in that resource.



Table 2: Drill Hole Locations



Hole ID Easting Northing Elevation Azimuth Dip Length
LRGF-22-115 586554 2336781 1322 180 -50 346
LRGF-22-116 587028 2336809 1263 180 -45 515
LRGF-22-118 586880 2336845 1233 180 -45 435
LRGF-22-120 586977 2336827 1264 180 -45 504
LRGF-22-122 586858 2336828 1235 180 -45 487
LRGF-22-127 586499 2336939 1337 180 -46 101



In September, the company commissioned TMC Exploracion to complete an IP survey using the Pole:Dipole array on the El Favor property. The grid consists of a network of 28 N/S profiles spaced every 100 m from L-2W to L-25E ranging in length from 0.85 to 2.0 km.  The survey outlined several high chargeability anomalies representative of the sulphide mineralization along the El Favor – El Favor East zone.  A geophysical map showing anomalies and drilling targets is included as Figure 2 below.

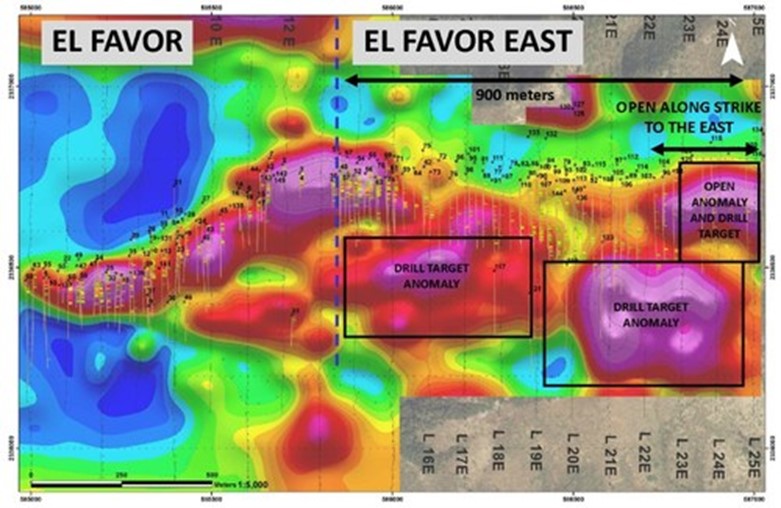

Figure 2: Geophysical Map – El Favor





El Favor is located approximately 800 meters along strike to the east of the El Orito deposit.  The combined systems cover approximately 2.9km in mineralized strike length over a 3.7km distance. At El Orito, wide zones of precious and base metal mineralization were cut by drill holes at El Orito at elevations between 600 to 900m.  The drill holes at El Favor have cut primarily silver-gold mineralization with trace to minor amounts of base metals at a higher elevation in the system, between 1,050m to 1,400m, compared to the semi-massive to massive base metal sulphide mineralization seen deeper in the El Orito deposit.

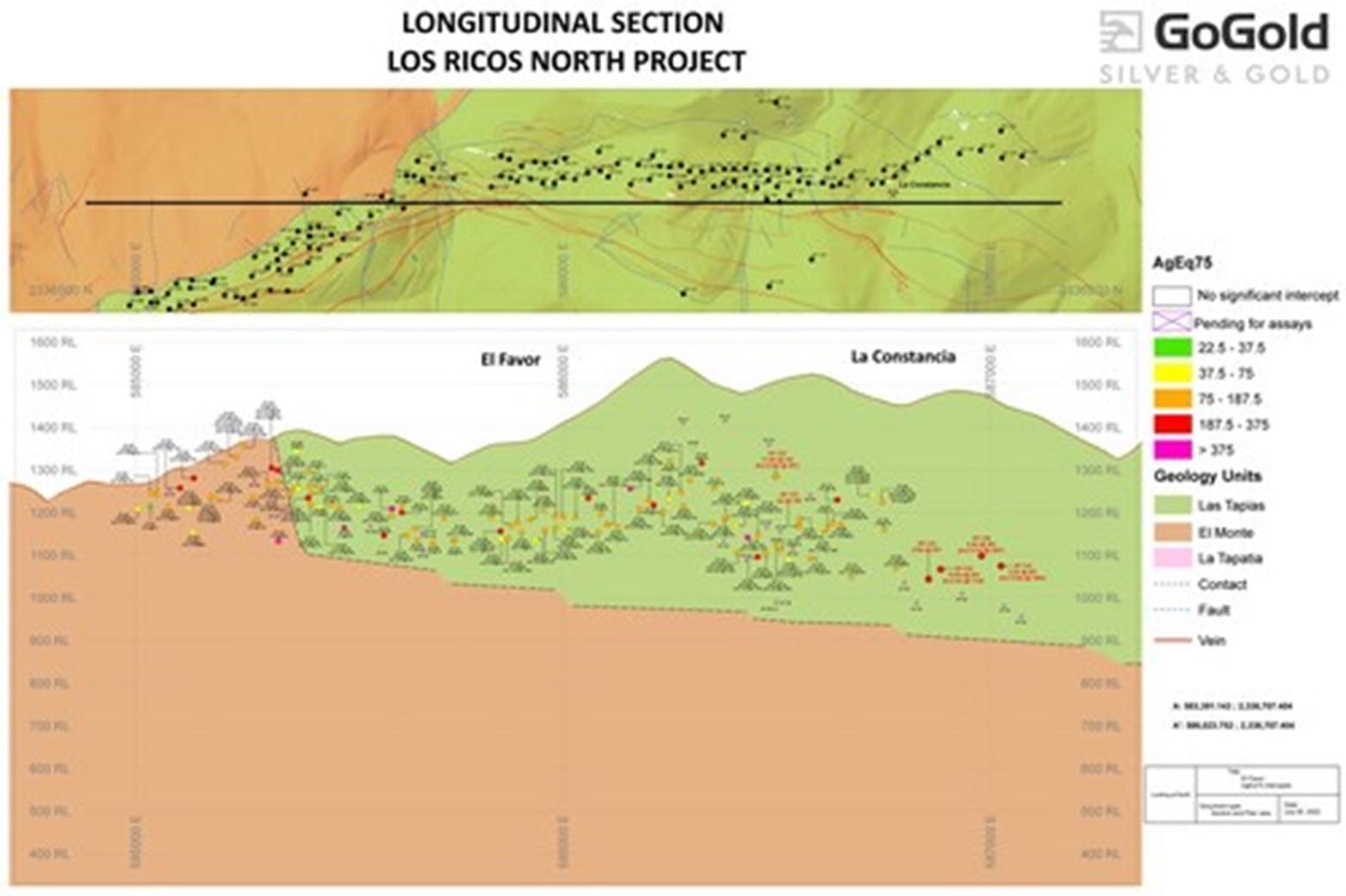

Figure 3: Favor Long Section





VRIFY Slide Deck and 3D Presentation



VRIFY is a platform being used by companies to communicate with investors using 360° virtual tours of remote mining assets, 3D models and interactive presentations. VRIFY can be accessed by website and with the VRIFY iOS and Android apps.



The VRIFY Slide Deck and 3D Presentation for GoGold can be viewed at: https://vrify.com/decks/10437 and on the Company’s website at: www.gogoldresources.com.



Los Ricos District Exploration Projects



The Company’s two exploration projects at its Los Ricos Property are in Jalisco state, Mexico. The Los Ricos South Project began in March 2019 and an initial Mineral Resource was announced on July 29, 2020 which disclosed a Measured & Indicated Mineral Resource of 63.7 million ounces AgEq grading 199 g/t AgEq contained in 10.0 million tonnes, and an Inferred Mineral Resource of 19.9 million ounces AgEq grading 190 g/t AgEq contained in 3.3 million tonnes.  An initial PEA on the project was announced on January 20, 2021 indicating an NPV5% of US$295M.



The Los Ricos North Project was launched in March 2020 and an initial Mineral Resource was announced on December 7, 2021, which disclosed an Indicated Mineral Resource of 87.8 million ounces AgEq grading 122 g/t AgEq contained in 22.3 million tonnes, and an Inferred Mineral Resource of 73.2 million ounces AgEq grading 111 g/t AgEq contained in 20.5 million tonnes. The Company has a drill program for an additional 100,000 metres of drilling for 2022 in place.



Procedure, Quality Assurance / Quality Control and Data Verification



The diamond drill core (HQ size) is geologically logged, photographed and marked for sampling. When the sample lengths are determined, the full core is sawn with a diamond blade core saw with one half of the core being bagged and tagged for assay. The remaining half portion is returned to the core trays for storage and/or for metallurgical test work.



The sealed and tagged sample bags are transported to the ActLabs facility in Zacatecas, Mexico. ActLabs crushes the samples and prepares 200-300 gram pulp samples with ninety percent passing Tyler 150 mesh (106μm). The pulps are assayed for gold using a 50-gram charge by fire assay (Code 1A2-50) and over limits greater than 10 grams per tonne are re-assayed using a gravimetric finish (Code 1A3-50). Silver and multi-element analysis is completed using total digestion (Code 1F2 Total Digestion ICP). Over limits greater than 100 grams per tonne silver are re-assayed using a gravimetric finish (Code 8-Ag FA-GRAV Ag).



Quality assurance and quality control procedures monitor the chain-of-custody of the samples and includes the systematic insertion and monitoring of appropriate reference materials (certified standards, blanks and duplicates) into the sample strings. The results of the assaying of the QA/QC material included in each batch are tracked to ensure the integrity of the assay data. All results stated in this announcement have passed GoGold’s QA/QC protocols.



Mr. David Duncan, P. Geo. is the qualified person as defined by National Instrument 43-101 and is responsible for the technical information of this release.



About GoGold Resources



GoGold Resources is a Canadian-based silver and gold producer focused on operating, developing, exploring and acquiring high quality projects in Mexico.  The Company operates the Parral Tailings mine in the state of Chihuahua and has the Los Ricos South and Los Ricos North exploration projects in the state of Jalisco. Headquartered in Halifax, NS, GoGold is building a portfolio of low cost, high margin projects.
