Significant Results from RC Drilling at Tibooburra Gold Project











HIGHLIGHTS

  • Novo completed its maiden drill program at the Clone prospect as part of the Tibooburra Gold Project, in May 2025. The program comprised 14 RC holes for 1,984 m, testing 500 m of strike.
  • Drilling produced significant high-grade gold intercepts including:
    • 12 m @ 5.90 g/t Au from 16 m, including 5 m @ 13.74 g/t Au from 23 m (TBR0001)
    • 17 m @ 2.40 g/t Au from 59 m including 9 m @ 4.14 g/t Au from 59 m (TBR0014)
  • The peak intercept in hole TBR001 (12 m @ 5.90 g/t Au) fills a 180 m gap in previous drilling by Manhattan Corporation Limited (ASX: MHC), where 9 m at 6.03 g/t Au from 16 m(CL0010) was intersected ~100 m to the south of TBR0001, and 6 m @ 8.39 g/t Au from 82 m (CL0007), was intersected ~80 m to the north.
  • Grade and width continuity has been successfully demonstrated by the RC drilling and indicates a shallow north plunge to the near-surface shoot of high-grade gold mineralisation, now defined over 300 m strike.
  • High-grade intercepts remain open to the north, both down plunge and down dip and warrants follow up RC drilling which is being designed.
  • Future work at Tibooburra will include detailed structural analysis to understand controls on mineralisation in the belt will include: 1) down hole imaging at Clone, 2) relogging core at New Bendigo and 3) mapping the Pioneer – Phoenix trend.
  • Novo met (and exceeded) its required minimum spend of $500,000 for the initial farm-in period under the binding term sheet with Manhattan Corporation Limited during June 2025.



Mike Spreadborough, Executive Co-Chairman and Acting Chief Executive Officer, said: “Results from the RC drill program at the Clone prospect include two intercepts above 40 mxg Au, where drilling has successfully intersected high-grade near-surface gold mineralisation consistent with a shallow plunging shoot. The consistency of grade and thickness over a 300 m strike is very encouraging. Follow up RC drilling to extend gold mineralisation to the north is warranted and is now being designed.



Some 7 km southeast of the Clone prospect, the New Bendigo prospect displays a similar shallow northerly plunge and will also be advanced with structural analysis and interpretation of historic diamond core, in preparation for potential extensional drilling.



Further systematic exploration programs are planned along the full project strike length testing mineralised trends from New Bendigo to Warratta Reef and Pioneer/Phoenix to Clone to identify potential drill targets. Tibooburra remains an exciting exploration project given the extent of the system along a 22 km strike of historic workings, and limited systematic exploration or drilling.”



Novo Resources Corp.  (ASX: NVO) (TSX: NVO) (OTCQB: NSRPF) is pleased to announce significant high-grade gold results from the Company’s maiden drilling program at the Tibooburra Gold Project (Figure 1), located in northwestern NSW. The program comprised 14 holes for 1,984 m, testing 500 m of strike at the Clone prospect.



Tibooburra is an advanced exploration opportunity and covers much of the historic Albert Goldfields. Tenure includes six granted exploration licences over 630 sq km and covers the historic workings over a strike of over 22 km from Phoenix North to New Bendigo.



In late 2024, Novo completed a binding farm-in/JV agreement for Tibooburra with Manhattan Corporation Limited (ASX: MHC)1. The agreement grants Novo an option to acquire a 70% interest in the tenements comprising the Tibooburra Gold Project, subject to (among other things) Novo meeting two minimum expenditure requirements over two 12-month periods.



Novo met (and exceeded) the required minimum spend of $500,000 for the initial farm in period under the binding term sheet during June 2025.

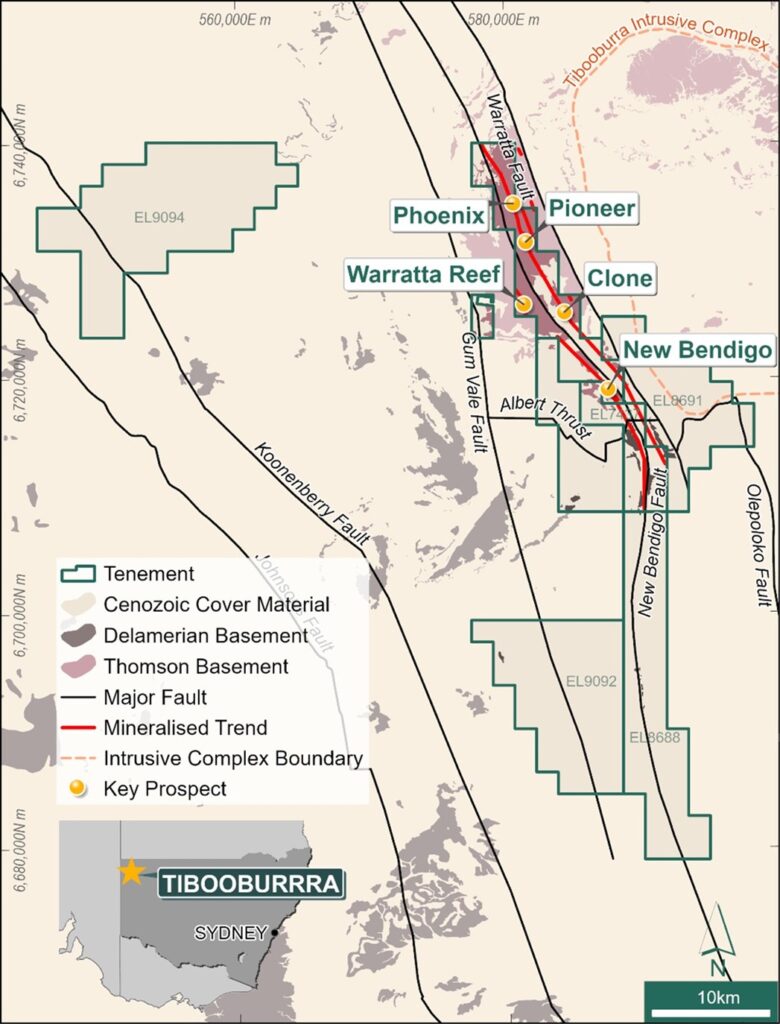

Figure 1 Tibooburra Gold Project location and tenement map, showing main prospects.



Clone Prospect Surface Exploration



Initial exploration completed by Novo in Q1 2025 focused on Clone2 and included detailed structural, lithological and regolith mapping, pXRF analysis of soils and rocks, -80# mesh soil sampling and rock chip sampling.



Novo rock chip sampling returned exceptional peak results of 89.6 g/t Au and 41.9 g/t Au2 from mullock dump samples associated with historical workings, and 31.4 g/t Au and 10.4 g/t Au2 from limited quartz vein outcrop.



Soil sampling defined a ~ 600 m long and up to 250 m wide coherent gold in soil anomaly at > 30 ppb Au, with standout peak results of 1,585 ppb Au and 1,440 ppb Au2.



Mapping defined a west dipping reverse fault/thrust associated with high-grade gold mineralisation. Most historical workings and significant sericite-carbonate alteration are proximal to, or constrained within the fault/shear zone (Figure 2). The turbidite stratigraphy is intensley folded (tight to isoclinal) with most fold axes plunging moderately NNW. The intersection of regional foliation and the main structures, provide a shallow north to NNE plunging intersetion, similar to the high-grade shoot plunge defined by the recent drilling.

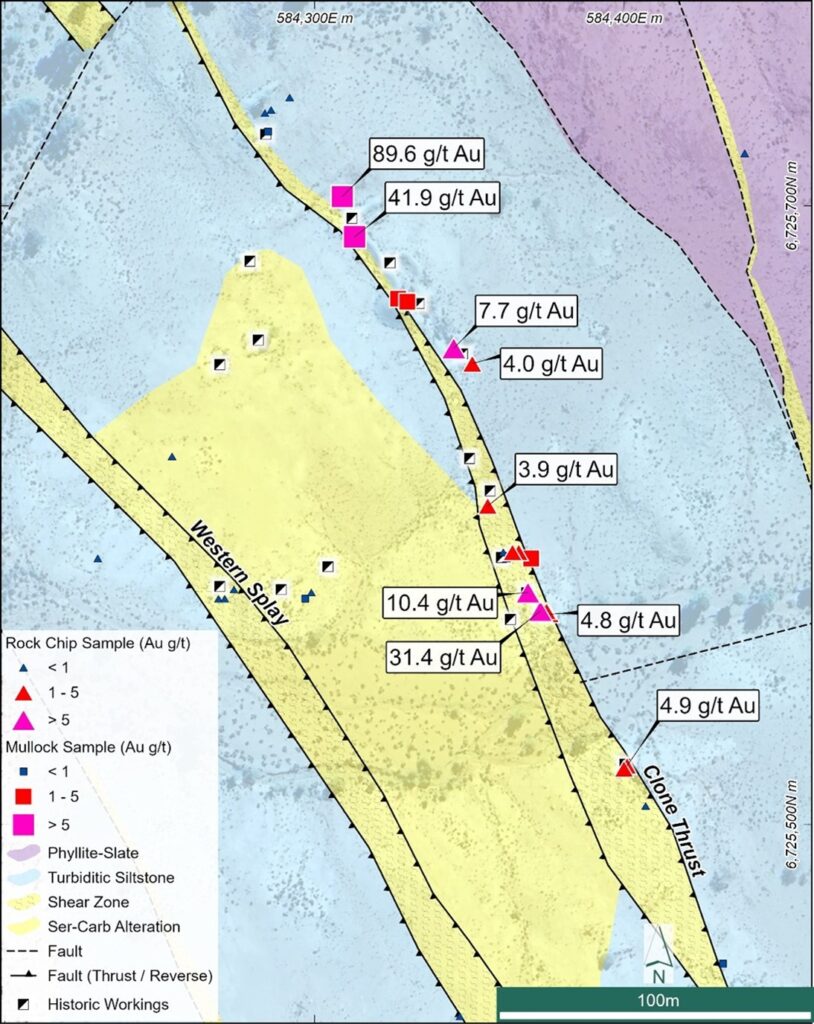

Figure 2 Clone historic workings, geological interpretation and surface rock chip results 2.



Clone Prospect RC Drill Program



RC drilling was completed at Clone in May 2025, with 14 holes drilled for 1,984 m on approximately 60 m to 150 m spaced sections (Figure 3, 4 and 5).



The program was designed to test 500 m strike of Clone in the main area of historical workings, informed by Novo’s geological mapping and sampling and historical drilling by Manhattan3.



Significant results from the RC drill program include:

  • 12 m @ 5.90 g/t Au from 16 m including 5 m @ 13.74 g/t Au from 23 m (TBR0001)
  • 17 m @ 2.40 g/t Au from 59 m including 9 m @ 4.14 g/t Au from 59 m (TBR0014)



The results show grade and width continuity similar to the original Manhattan RC drilling and support a near-surface shoot of north-plunging high-grade gold mineralisation, now defined over 300 m strike (Figure 6).



Drill testing was designed to best intersect interpreted mineralised trends and structures at right angles to minimise bias in sample collection. All intervals are reported as down hole widths, as true orientation of mineralisation is still unknown.



Historical drilling completed by Manhattan in 2023, highlighted potential for shallow dipping high-grade gold mineralisation, testing to a maximum depth of 75 m, with significant drill results returned from eleven holes including:

  • 6 m @ 8.39 g/t Au from 82 m (CL0007)
  • 9 m at 6.03 g/t Au from 16 m (CL0010)
  • 6 m at 4.22 g/t Au from 66 m, including 4 m @ 6.21 g/t Au from 68 m (CL0004)
  • 29 m @ 1.37 g/t Au from 61 m , including 19 m @ 1.81 g/t Au from 62 m Au (CL0002)



Broad zones of lower grade mineralisation were also intersected, highlighting the gold fertility of the structural corridor. Drill intercepts from both Novo and Manhattan support this model and include:

  • 10 m @ 0.45 g/t Au from 105 m (TBR0013)
  • 23 m @ 0.51 g/t Au from 71 m (CL0001)
  • 14 m @ 0.5 g/t Au from 17 m (CL0005)
  • 10 m @ 0.53 g/t Au from 57 m (CL0007)



Refer Appendix 1 for all drill collar information, and Appendices 2 and 3 for all significant drill assay results.



New Bendigo Prospect



New Bendigo is an advanced target at Tibooburra approximately 7 km southeast of Clone, and along a parallel trend. This was the focus area for Manhattan’s drilling programs. The prospect is mostly under cover but has several shafts and extensive historical workings over 2 km strike.



Multiple high-grade gold intercepts were defined during several drill programs by Manhattan at New Bendigo, where peak drill results include:

  • 30 m at 4.03 g/t Au from 11 m, including 5 m at 20.86 g/t Au (NB0033)1
  • 16 m at 13.89 g/t Au from 1 m, including 3 m at 69.20 g/t Au (NB0083)1
  • 8 m at 40.5 g/t Au from 70 m, including 3 m at 105.34 g/t Au (NB0089)1
  • 7 m at 13.10 g/t Au from 97 m, including 5 m at 18.01 g/t Au (NB0113)1
  • 13 m at 6.16 g/t Au from 50 m, including 3 m at 25.48 g/t Au (NB0122)1

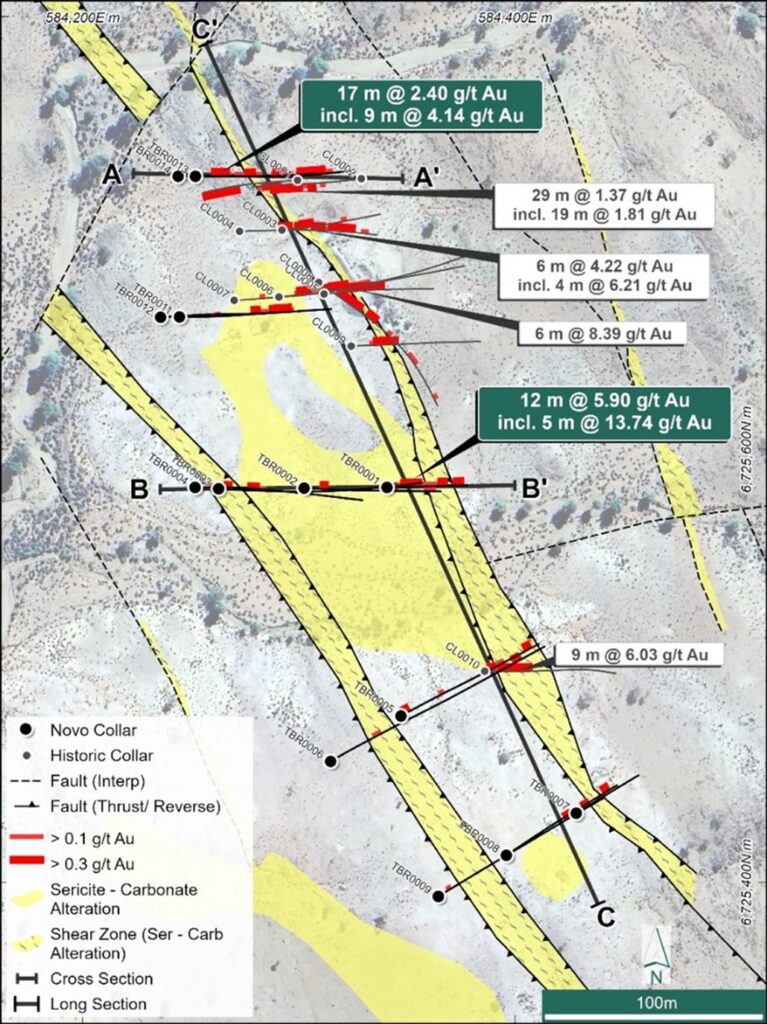

Figure 3 Significant intercepts from Novo (green callout) and Manhattan (white callout) RC drilling programs, dill hole and section location and geological interpretation

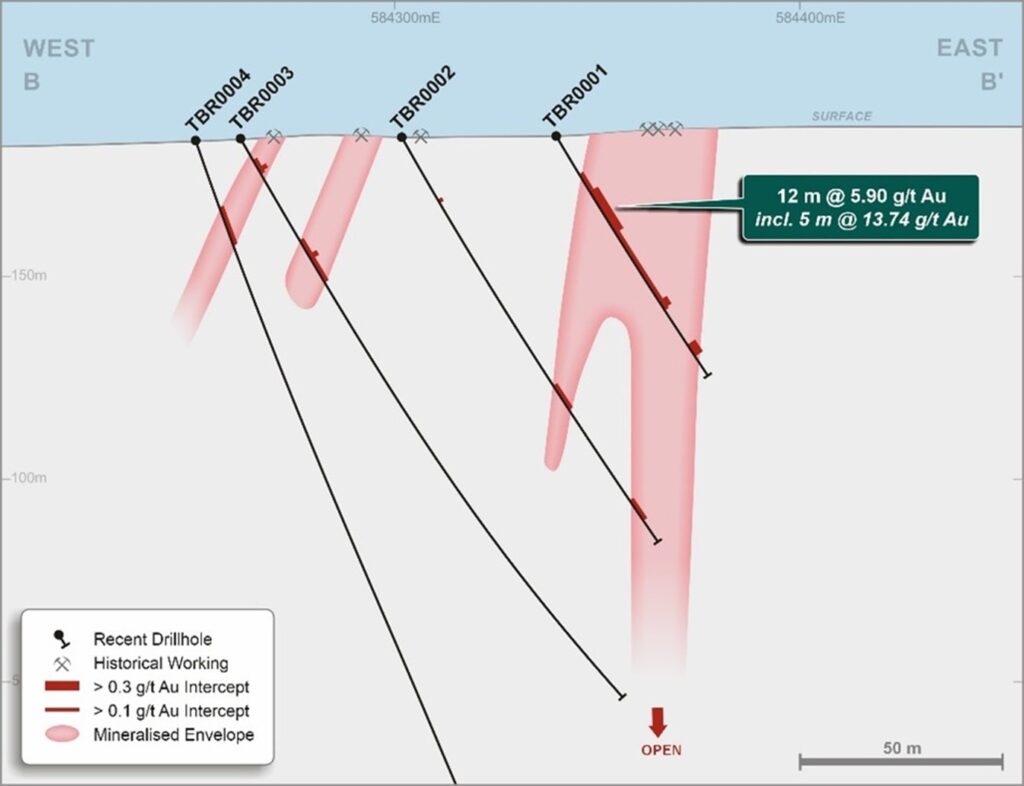

 Figure 4 Clone drill sections with interpreted mineralised envelope and drill intercepts (green callout Novo drilling, grey callout Manhattan drilling) – see Figure 3 for location

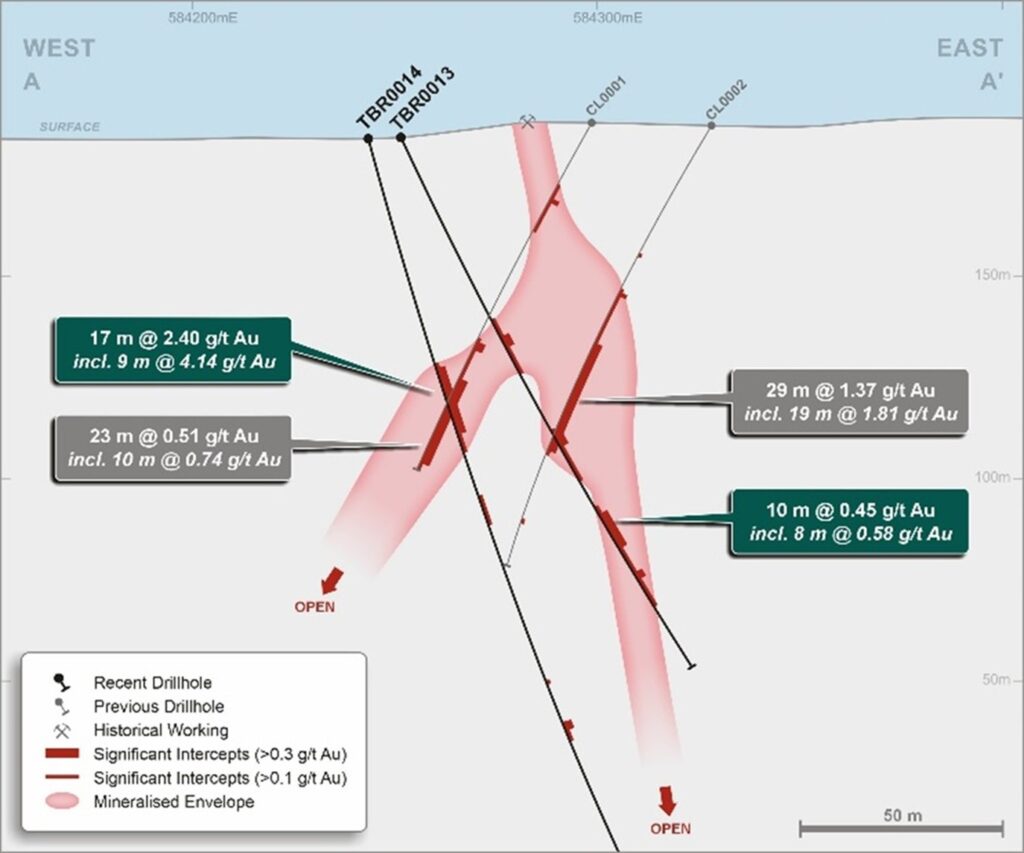

 Figure 5 Clone drill sections with interpreted mineralised envelope and drill intercepts (green callout Novo drilling, grey callout Manhattan drilling) – see Figure 3 for location

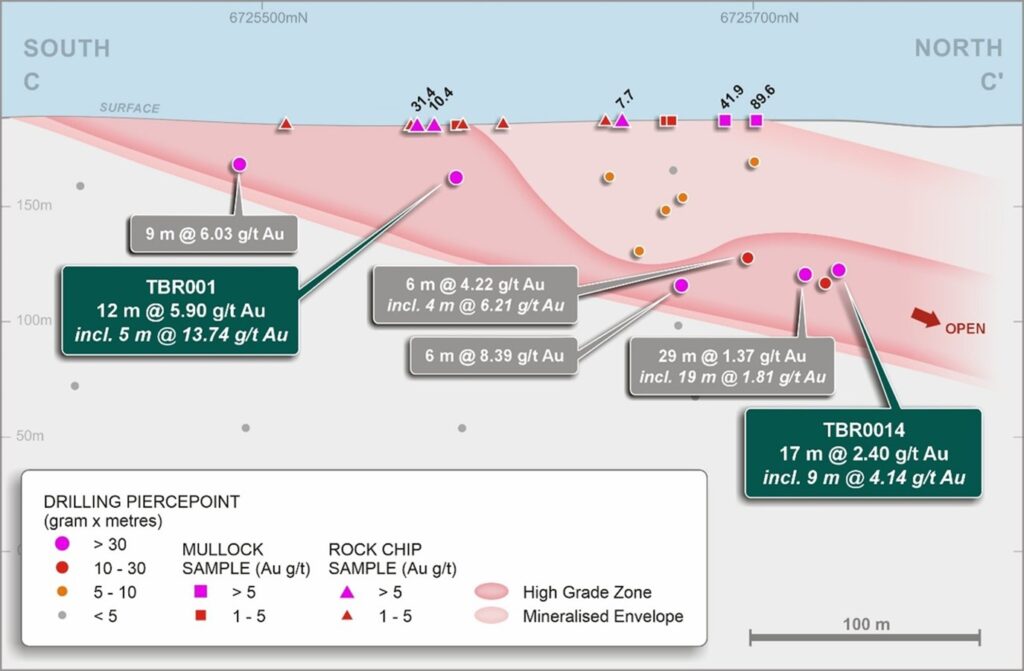

 Figure 6 Clone interpreted long section highlighting grade and width continuity, shallow north plunge to the high-grade shoot and mineralising system open to the north (green callout Novo drilling, grey callout Manhattan drilling) – see Figure 3 for location



There is potential for repeated lodes at depth and along the interpreted shallow northerly plunge at New Bendigo, however controls on gold mineralisation are not yet fully understood. Figure 7 shows current interpretation of grade from historical drilling, clearly delineating a northern plunge control on the long section.



Novo has not conducted data verification (as that term is defined in National Instrument 43-101 Standards of Disclosure for Mineral Projects and JORC 2012) in respect of the above data from New Bendigo and therefore is not to be regarded as reporting, adopting or endorsing those results/figures. No assurance can be given that Novo will achieve similar results.

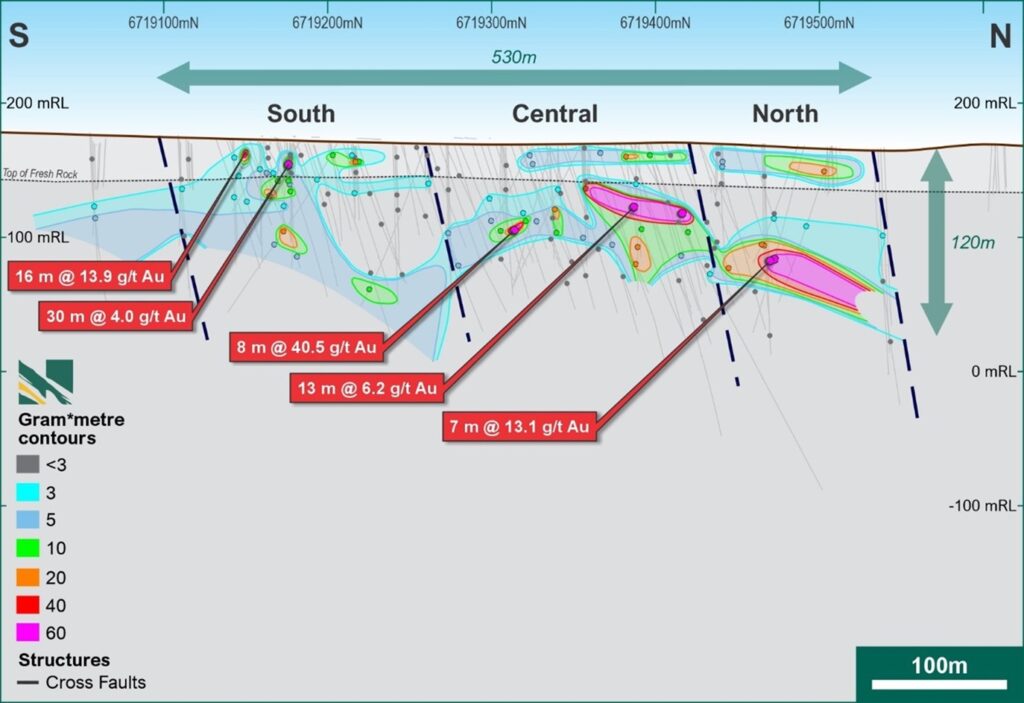

Figure 7 Long section interpretation at New Bendigo by Novo, based on historical data.



Tibooburra Geological Model



The mineralisation at Tibooburra is classified as an orogenic gold system hosted within a turbidite-dominated sequence, sharing key structural and geological similarities with the turbidite-hosted gold deposits of Central Victoria’s Western Lachlan Orogen (Figure 8). The historic workings at Tibooburra extend over 22 km along strike.



Similarities between Tibooburra and Central Victoria include moderate west dipping mineralised reverse faults, tight shallow plunging folds, age of the host rocks, mineralisation styles and structural deformation history. The current understanding of the Clone and New Bendigo prospects provides several possibilities for the detailed mineralisation style (Figure 8) and structural control on the high-grade shoots.

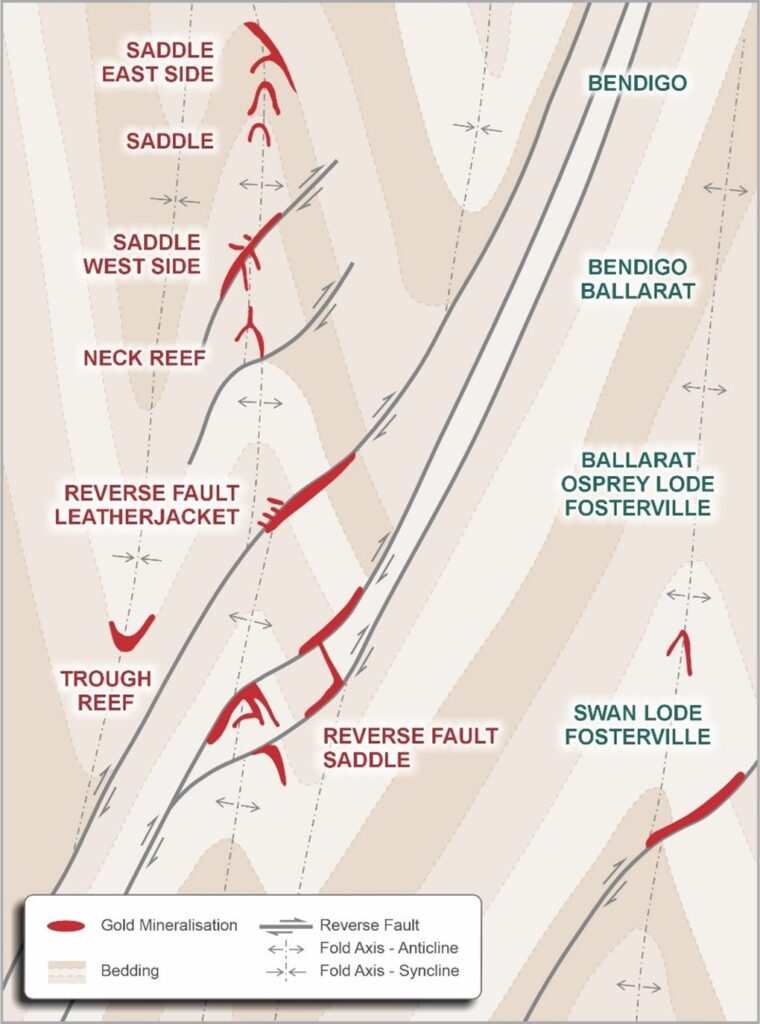

Figure 8 Simplified structural model for orogenic turbidite-hosted gold deposits of Central Victoria (not depth specific) and examples of these deposits in Victoria (modified and adapted from W.R.H Ramsay et al 1998 and Hitchman et al 2017).



This rationale, adapted from Ramsay et al. (1998), Hitchman et al. (2017), and Greenfield and Reid (2006)4, underscores Tibooburra’s potential as an orogenic gold system, with exploration focused on structurally controlled targets analogous to the Victorian Goldfields.



While Novo believes such similarities exist, no assurance can be given that Novo will achieve similar results at its Tibooburra Project.



Forward Program



Next steps at Tibooburra include designing follow up RC drilling at Clone to test the northern extension of the high-grade shoot defined by Novo over 300 m strike in recent drilling. In addition, planned work at Clone includes down hole imaging to determine if structural data (vein orientations) can be obtained, and whether this provides a useful basis for structural targeting.



Relogging of core from New Bendigo is also planned to better identify controls on gold mineralisation at the prospect. New Bendigo displays a similar shallow northerly plunge to Clone and will also be assessed for extensional RC drilling.



Further and broader scale work at Tibooburra will be systematic and will focus on understanding the belt-wide structural controls on gold mineralisation by mapping and sampling the northern extension of the Clone Trend at Pioneer / Phoenix, and by mapping the Waratah Reef and southern New Bendigo areas.

QP STATEMENT



Mrs Karen (Kas) De Luca (MAIG), is the qualified person, as defined under National Instrument 43-101 Standards of Disclosure for Mineral Projects, responsible for, and having reviewed and approved, the technical information contained in this news release. Mrs De Luca is Novo’s General Manager Exploration.



ABOUT NOVO



Novo is an Australian based gold explorer listed on the ASX and the TSX focussed on discovering standalone gold and copper projects with > 1 Moz development potential. Novo is an innovative gold explorer with a significant land package covering approximately 5,500 square kilometres in the Pilbara region of Western Australia, along with the 22 square kilometre Belltopper project in the Bendigo Tectonic Zone of Victoria, Australia.



Novo’s key project area in the Pilbara is the Egina Gold Camp, where Northern Star Resources Limited (ASX: NST) is farming-in to form a JV at the Becher Project and surrounding tenements through exploration expenditure of A$25 million within 4 years for a 50% interest. The Becher Project has similar geological characteristics as Northern Star’s 12.7 Moz Hemi Project#. Novo is also advancing gold exploration south of Becher in the Egina Gold Camp, part of the Croydon JV (Novo 70%: Creasy Group 30%). Novo continues to undertake early-stage exploration elsewhere across its Pilbara tenement portfolio.



Novo has also formed a lithium joint venture with SQM in the Pilbara which provides shareholder exposure to battery metals.



Novo has recently strengthened its high-quality, Australian based exploration portfolio by adding the TechGen John Bull Gold Project in the New England Orogen of NSW, and Manhattan Tibooburra Gold Project in the Albert Goldfields in northwestern NSW. Both projects demonstrate prospectivity for significant discovery and resource definition and align with Novo’s strategy of identifying and exploring projects with > 1 Moz Au potential. These high-grade gold projects compliment the landholding consolidation that forms the Toolunga Project in the Onslow District in Western Australia.



Novo has a significant investment portfolio and a disciplined program in place to identify value accretive opportunities that will build further value for shareholders.



Please refer to Novo’s website for further information including the latest corporate presentation.



#Refer to De Grey’s ASX Announcement, Hemi Gold Project mineral Resource Estimate (MRE) 2024, dated 14 November 2024. No assurance can be given that a similar (or any) commercially viable mineral deposit will be determined at Novo’s Becher Project.



Appendix 1: Collar locations for the Tibooburra RC program at Clone. All coordinates are in MGA1994, zone 54



Hole ID Type Depth
(m)
Easting (m) Northing (m) Height
(m ASL)
Dip ° Azimuth °
(grid)
TBR0001 RC 70 584,340 6,725,581 185 -60 90
TBR0002 RC 118 584,302 6,725,581 184 -61 94
TBR0003 RC 167 584,262 6,725,580 184 -61 94
TBR0004 RC 205 584,251 6,725,581 183 -71 89
TBR0005 RC 137 584,347 6,725,475 186 -61 62
TBR0006 RC 185 584,314 6,725,454 186 -62 59
TBR0007 RC 65 584,428 6,725,430 188 -60 58
TBR0008 RC 113 584,395 6,725,411 188 -61 56
TBR0009 RC 155 584,364 6,725,392 188 -61 59
TBR0010 RC 101 584,474 6,725,271 184 -61 60
TBR0011 RC 137 584,244 6,725,660 185 -62 90
TBR0012 RC 191 584,235 6,725,660 184 -76 88
TBR0013 RC 149 584,252 6,725,725 184 -66 91
TBR0014 RC 191 584,244 6,725,725 184 -76 89

Appendix 2: Significant intercepts greater than 0.5 gram*metres for the Novo RC program at Clone, using a 0.3 g/t cut-off and 3 m consecutive internal waste. Internal zones of high grade are based on a 0.5 g/t cut off and 2 m consecutive internal waste resulting in > 1 gram * metre



Hole ID From
(m)
To (m) Interval (m) Au (g/t) Gram x
metre Au
Intercept
TBR0001 16 28 12 5.90 70.8 12 m @ 5.9 g/t Au from 16 m
including 23 28 5 13.74 68.7 5 m @ 13.74 g/t Au from 23 m
TBR0001 48 50 2 0.41 0.8 2 m @ 0.41 g/t Au from 48 m
TBR0001 61 64 3 0.44 1.3 3 m @ 0.44 g/t Au from 61 m
TBR0003 8 9 1 0.83 0.8 1 m @ 0.83 g/t Au from 8 m
TBR0003 33 34 1 0.50 0.5 1 m @ 0.5 g/t Au from 33 m
TBR0005 6 7 1 0.89 0.9 1 m @ 0.89 g/t Au from 6 m
TBR0005 127 128 1 0.56 0.6 1 m @ 0.56 g/t Au from 127 m
TBR0008 103 104 1 3.79 3.8 1 m @ 3.79 g/t Au from 103 m
TBR0009 141 142 1 0.76 0.8 1 m @ 0.76 g/t Au from 141 m
TBR0011 71 73 2 1.47 2.9 2 m @ 1.47 g/t Au from 71 m
TBR0011 87 90 3 0.35 1.1 3 m @ 0.35 g/t Au from 87 m
TBR0011 99 100 1 0.49 0.5 1 m @ 0.49 g/t Au from 99 m
TBR0013 55 58 3 0.47 1.4 3 m @ 0.47 g/t Au from 55 m
TBR0013 82 86 4 1.64 6.6 4 m @ 1.64 g/t Au from 82 m
including 83 86 3 2.05 6.2 3 m @ 2.05 g/t Au from 83 m
TBR0013 105 115 10 0.45 4.5 10 m @ 0.45 g/t Au from 105 m
including 110 115 5 0.58 2.9 5 m @ 0.58 g/t Au from 110 m
TBR0013 122 124 2 0.93 1.9 2 m @ 0.93 g/t Au from 122 m
including 123 124 1 1.54 1.5 1 m @ 1.54 g/t Au from 123 m
TBR0014 59 76 17 2.40 40.8 17 m @ 2.4 g/t Au from 59 m
including 59 68 9 4.14 37.2 9 m @ 4.14 g/t Au from 59 m
And 73 76 3 0.78 2.3 3 m @ 0.78 g/t Au from 73 m
TBR0014 152 154 2 0.52 1.0 2 m @ 0.52 g/t Au from 152 m

Appendix 3: Significant intercepts greater than 0.5 gram*metres recalculated for the Manhattan 2023 RC program at Clone, using a 0.3 g/t cut-off and 3 m consecutive internal waste. Internal zones of high grade are based on a 0.5 g/t cut off and 2 m consecutive internal waste resulting in > 1 gram * metre



Hole ID From
(m)
To (m) Interval (m) Au (g/t) Gram x
metre Au
Intercept
CL0001 21 22 1 0.72 0.7 1 m @ 0.72 g/t Au from 21 m
CL0001 61 63 2 0.64 1.3 2 m @ 0.64 g/t Au from 61 m
CL0001 71 94 23 0.51 11.7 23 m @ 0.51 g/t Au from 71 m
including 74 84 10 0.74 7.4 10 m @ 0.74 g/t Au from 74 m
CL0002 47 48 1 1.48 1.5 1 m @ 1.48 g/t Au from 47 m
CL0002 61 90 29 1.37 39.6 29 m @ 1.37 g/t Au from 61 m
including 62 81 19 1.81 34.4 19 m @ 1.81 g/t Au from 62 m
And 84 90 6 0.58 3.5 6 m @ 0.58 g/t Au from 84 m
CL0003 18 24 6 1.05 6.3 6 m @ 1.05 g/t Au from 18 m
including 18 22 4 1.43 5.7 4 m @ 1.43 g/t Au from 18 m
CL0004 43 44 1 1.85 1.9 1 m @ 1.85 g/t Au from 43 m
CL0004 52 54 2 0.33 0.7 2 m @ 0.33 g/t Au from 52 m
CL0004 66 72 6 4.22 25.3 6 m @ 4.22 g/t Au from 66 m
including 68 72 4 6.21 24.8 4 m @ 6.21 g/t Au from 68 m
CL0004 81 82 1 0.49 0.5 1 m @ 0.49 g/t Au from 81 m
CL0004 86 89 3 0.34 1.0 3 m @ 0.34 g/t Au from 86 m
CL0004 95 98 3 0.42 1.3 3 m @ 0.42 g/t Au from 95 m
CL0005 17 31 14 0.50 7.0 14 m @ 0.50 g/t Au from 17 m
including 17 18 1 1.00 1.0 1 m @ 1.00 g/t Au from 17 m
And 21 28 7 0.61 4.3 7 m @ 0.61 g/t Au from 21 m
CL0005 35 39 4 0.55 2.2 4 m @ 0.55 g/t Au from 35 m
CL0005 44 49 5 1.63 8.2 5 m @ 1.63 g/t Au from 44 m
including 44 48 4 1.95 7.8 4 m @ 1.95 g/t Au from 44 m
CL0006 38 42 4 1.64 6.5 4 m @ 1.64 g/t Au from 38 m
including 39 42 3 2.03 6.1 3 m @ 2.03 g/t Au from 39 m
CL0006 47 53 6 0.33 2.0 6 m @ 0.33 g/t Au from 47 m
including 52 53 1 0.78 0.8 1 m @ 0.78 g/t Au from 52 m
CL0007 57 67 10 0.53 5.3 10 m @ 0.53 g/t Au from 57 m
including 57 59 2 0.74 1.5 2 m @ 0.74 g/t Au from 57 m
And 62 67 5 0.69 3.5 5 m @ 0.69 g/t Au from 62 m
CL0007 82 88 6 8.39 50.4 6 m @ 8.39 g/t Au from 82 m
CL0008 24 26 2 1.84 3.7 2 m @ 1.84 g/t Au from 24 m
CL0008 31 33 2 0.45 0.9 2 m @ 0.45 g/t Au from 31 m
CL0008 39 42 3 0.59 1.8 3 m @ 0.59 g/t Au from 39 m
including 39 41 2 0.68 1.4 2 m @ 0.68 g/t Au from 39 m
CL0008 61 67 6 0.92 5.5 6 m @ 0.92 g/t Au from 61 m
including 61 67 6 0.92 5.5 6 m @ 0.92 g/t Au from 61 m
CL0009 24 32 8 1.12 8.9 8 m @ 1.12 g/t Au from 24 m
CL0009 37 40 3 0.58 1.7 3 m @ 0.58 g/t Au from 37 m
including 39 40 1 1.24 1.2 1 m @ 1.24 g/t Au from 39 m
CL0010 5 6 1 0.51 0.5 1 m @ 0.51 g/t Au from 5 m
CL0010 16 25 9 6.03 54.3 9 m @ 6.03 g/t Au from 16 m
CL0010 31 32 1 1.03 1.0 1 m @ 1.03 g/t Au from 31 m
CL0010 40 41 1 0.63 0.6 1 m @ 0.63 g/t Au from 40 m



Posted July 9, 2025
