Maple Gold Mines Ltd. (TSX-V: MGM) (OTCQB: MGMLF) (FSE: M3G) is pleased to report complete gold assay results (multi-element assay results remain pending) from the first phase of deep drilling at the Telbel Mine area of the Joutel Gold Project located in Québec, Canada, which is held by a 50/50 joint venture between the Company and Agnico Eagle Mines Limited.

The JV completed a total of 7,343 metres in three master drill holes and four wedge drill holes, with TB-22-001 and TB-22-003 (and their respective wedges) testing the modeled down-plunge extension of gold mineralization beneath the historical Telbel workings. TB-22-002 (and its wedge) was a step-out to test the southeast continuity of the Eagle-Telbel system (see Figure 1).

Highlighted Results and Key Takeaways:

• All three holes intersected significant horizons of semi-massive to massive sulfides, with TB-23-003W2 intersecting significant gold mineralization approximately 575 m below the lowest level of historical mining at Telbel.

• TB-23-003W2 intersected 3.5 grams per tonne Au over 4.8 m (from 2,018.2 m downhole), including 5.2 g/t Au over 2.0 m and 11.1 g/t Au over 0.5 m in semi-massive to massive pyrite. An additional intercept returned 3.9 g/t Au over 4.5 m in a pyrite-Fe-carbonate zone near the end of the hole (from 2,044.4 m), including 5.8 g/t Au over 2.0 m and 7.6 g/t Au over 1.0 m (see Figure 2 and Plates 1 and 2). These results indicate that gold mineralization is present well below the limits of historical mining in this area.

• While the majority of historical sulfide intercepts are located along or near the known Eagle-Telbel Mine Horizon, both TB-23-003 wedges intersected broader semi-massive pyrite intervals (up to 100 m downhole thickness), within which multiple lower-grade (up to 35 m thick and up to 1.1 g/t Au; see Table 1) intercepts were returned approximately 550 m up-hole from the intercepts noted above (see Figure 3). This lower-grade gold mineralization in semi-massive sulfide could represent the edges of a new zone and confirms that gold mineralization is not limited to a single stratigraphic interval (see Figure 1).

• The longest hole, TB-23-002AW1, was drilled to 2,242.0 m, and ended in sulfide mineralization, with anomalous gold grades increasing downhole; the hole may have ended on the edge of a more significant sulfide body. Shallower nearby historical holes have shown significant sulfide concentrations in this area (see Figure 3).

“This first phase of deep drilling at Telbel demonstrates the presence of high-grade gold mineralization beneath the underground mine workings and the deepest historical gold intercepts at Telbel,” stated Matthew Hornor, President and CEO of Maple Gold. “Two drill holes also essentially bottomed in mineralization, which indicates the potential for additional gold intercepts with modest drill hole extensions. The upper zone of lower-grade semi-massive pyrite in both TB-23-003W1 and -W2 also provide us with proof-of-concept for multiple additional broader zones of gold mineralization located in sparsely drilled areas with both grade and volume potential.”

Summary of Results and Technical Observations

The results from the initial Telbel deep drill program support the strike and depth continuity of the Eagle-Telbel Mine Horizon beyond the current limits of drilling and provide additional support for the presence of multiple mineralized horizons.

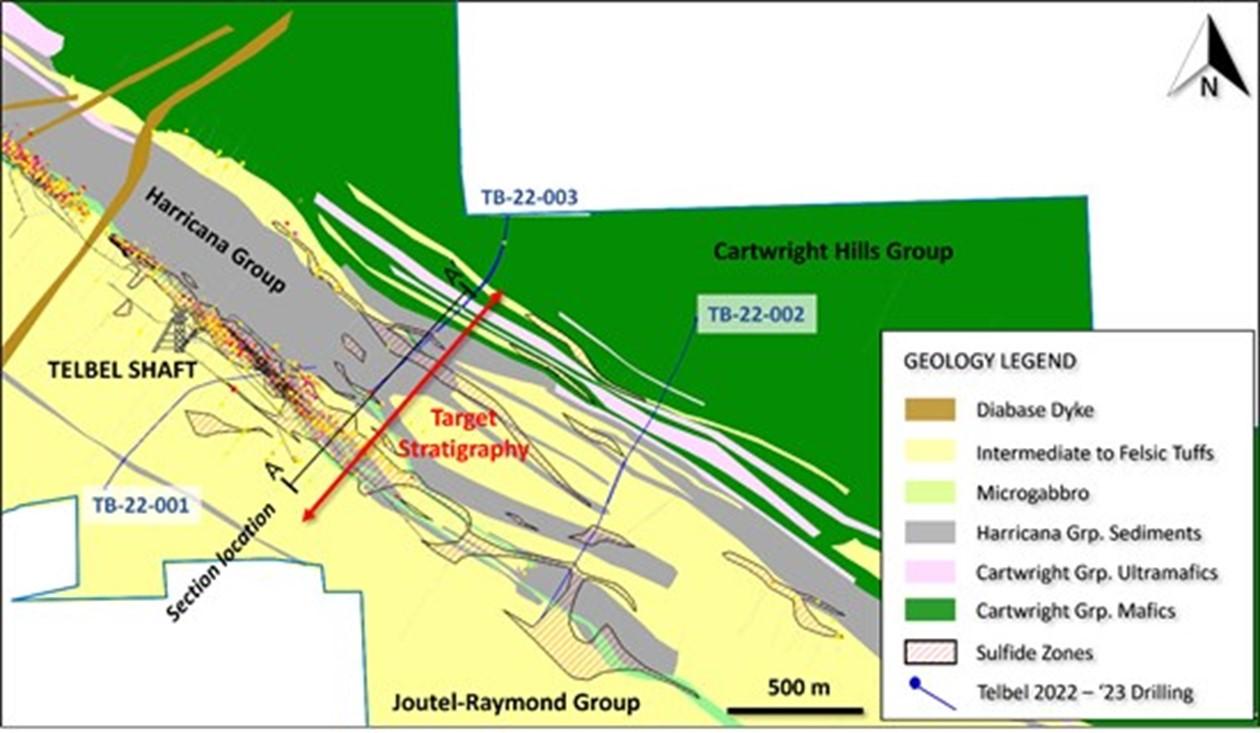

Figure 1: Plan View showing geology, drill hole collars/traces (started in 2022 with corresponding wedges completed in 2023 to reach targeted depths) and line of section (see Figure 3). Note multiple sulfide zones across about 1000 m of stratigraphy.

As encountered elsewhere within the Eagle-Telbel system, the main mineralized horizons appear to be closely associated with a key lithostructural contact zone between the felsic to intermediate volcanic and pyroclastic rocks of the Joutel-Raymond Grp. and the sedimentary rocks of the Harricana Grp. (see Figure 1 above); multiple subparallel zones have also been identified through drilling and 3D modeling.

Historical data and recent drilling both point to potential depth extensions of the Telbel deposit along a steep southeasterly plunge (Figure 2). A daughter (wedge) hole of less than 500 m will be considered to test this target concept during the next phase of drilling.

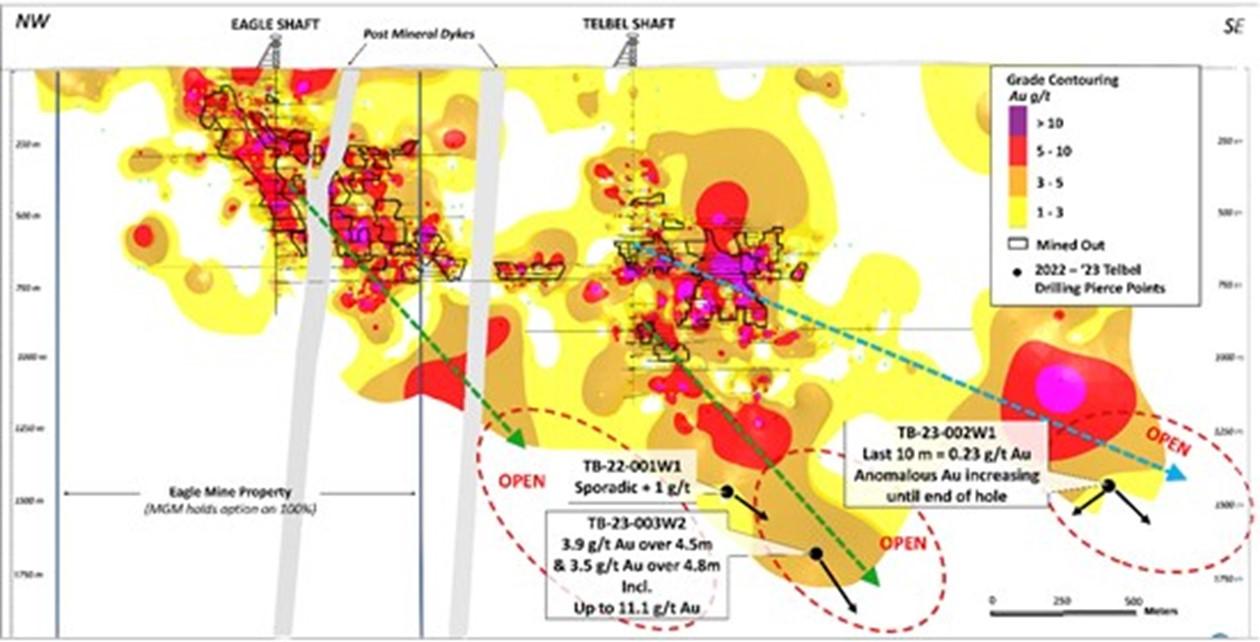

Figure 2: Long section with updated grade contouring showing new gold intercepts in TB-23-003W2, approximately 575 m below lowest level of historical mining at Telbel. Proposed vectors (arrows) point towards open areas with potential for higher grades and volume potential.

Hole TB-22-002W1 ended approximately 1000 m to the SE of TB-22-003W2 (see Figure 1). Multiple sulfide zones occur over this interval, and additional sulfide zones extend to the southeast of the first indicating the system is still open in that direction.

There appears to be a spatial association between the southern contact of a microgabbro unit and the main zone of gold mineralization (Mine Horizon – see section view in Figure 3 below). The microgabbro can also be locally mineralized and where it is, there is a clear association between deformation, alteration and gold content. Thus, the Company’s working mineralization model includes not only stratigraphic, but also structural controls. Deep drilling at Telbel included holes that were oriented north-south and south-north, which provides full coverage of the entire stratigraphy in this area.

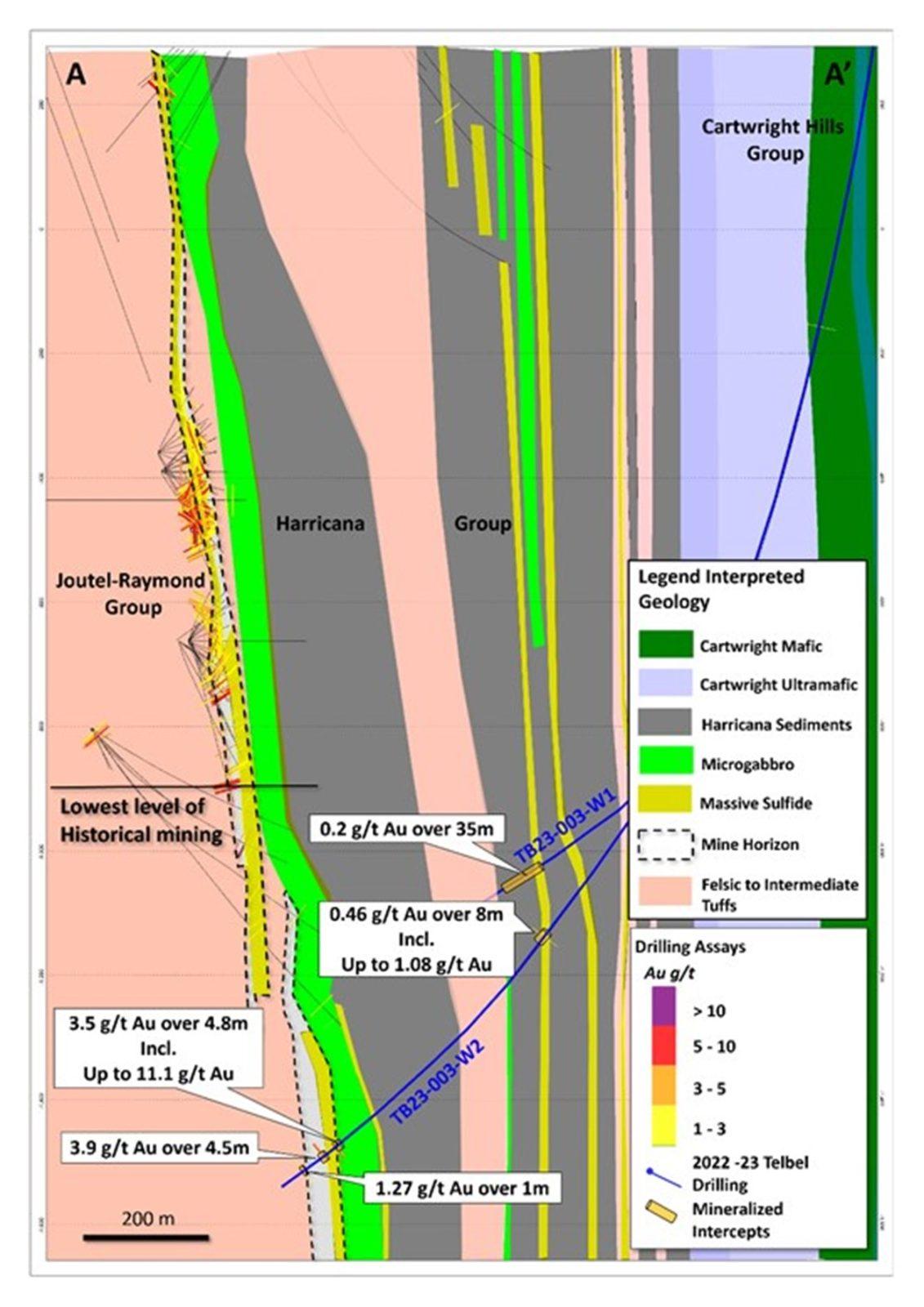

Figure 3: Cross section view looking NW showing TB-22-003 and its two wedges that intersected gold mineralization well below historical levels of mining and lower grade gold mineralization further up hole that might represent the edges of a new semi-massive pyrite zone.

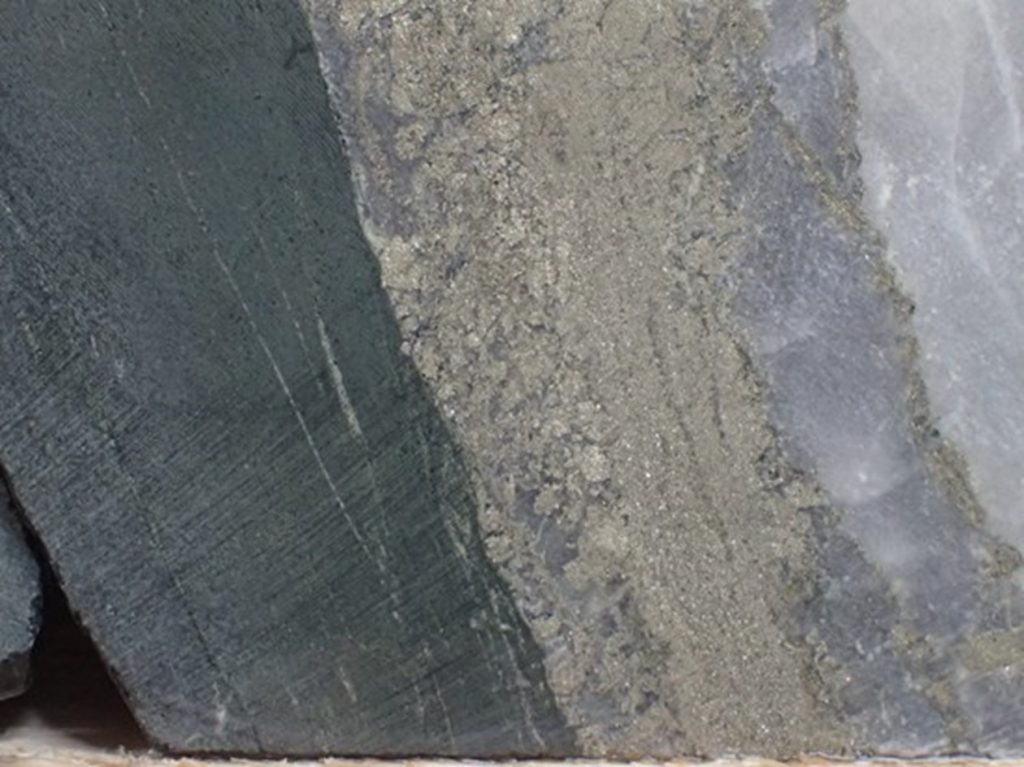

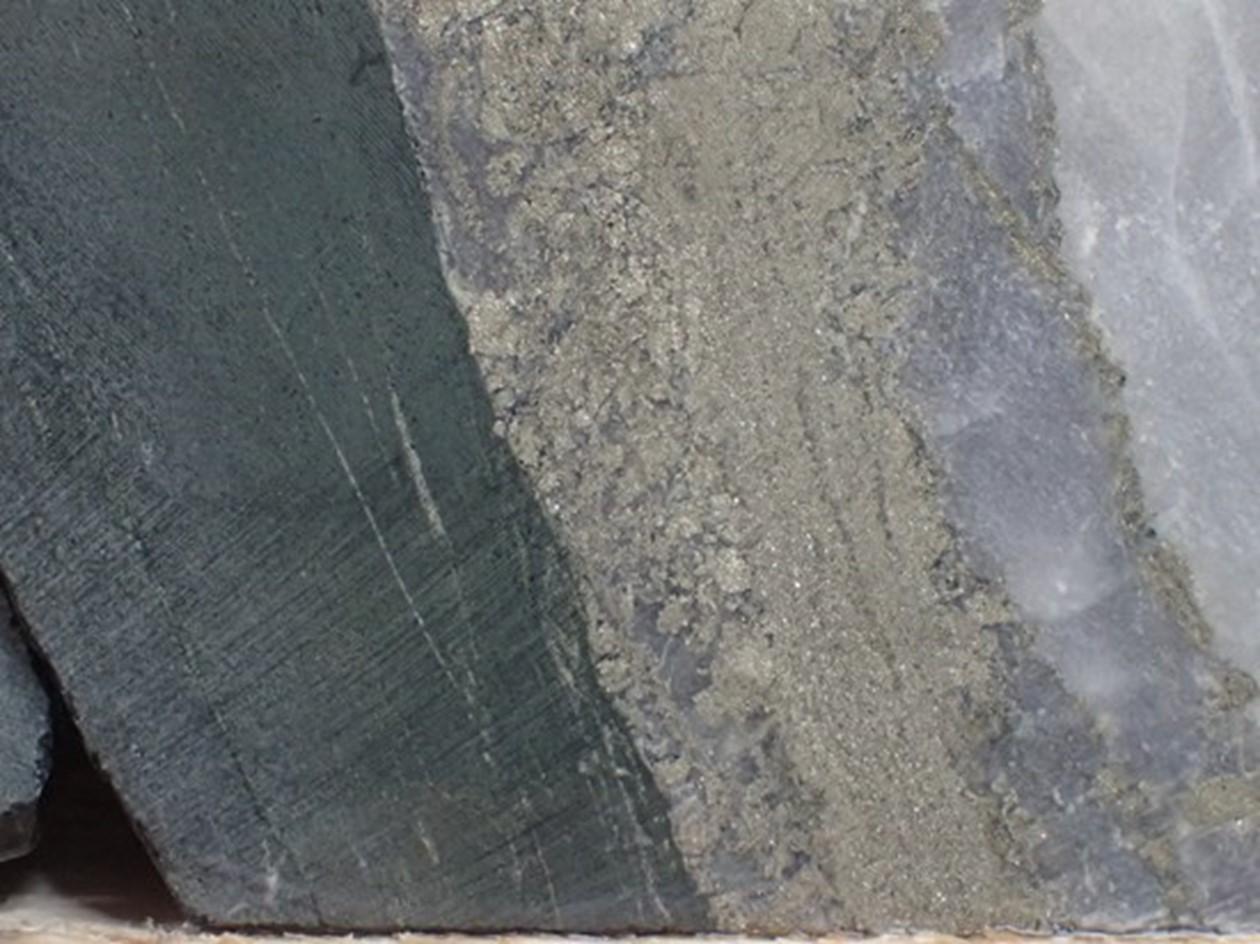

Plate 1: Southern (chilled) microgabbro contact with mineralized zone at 2,018.1 m downhole in TB-23-003W2. Sulfide rich interval from 2,018.2 m graded 6.4 g/t Au. NQ core, 47.6 mm diameter.

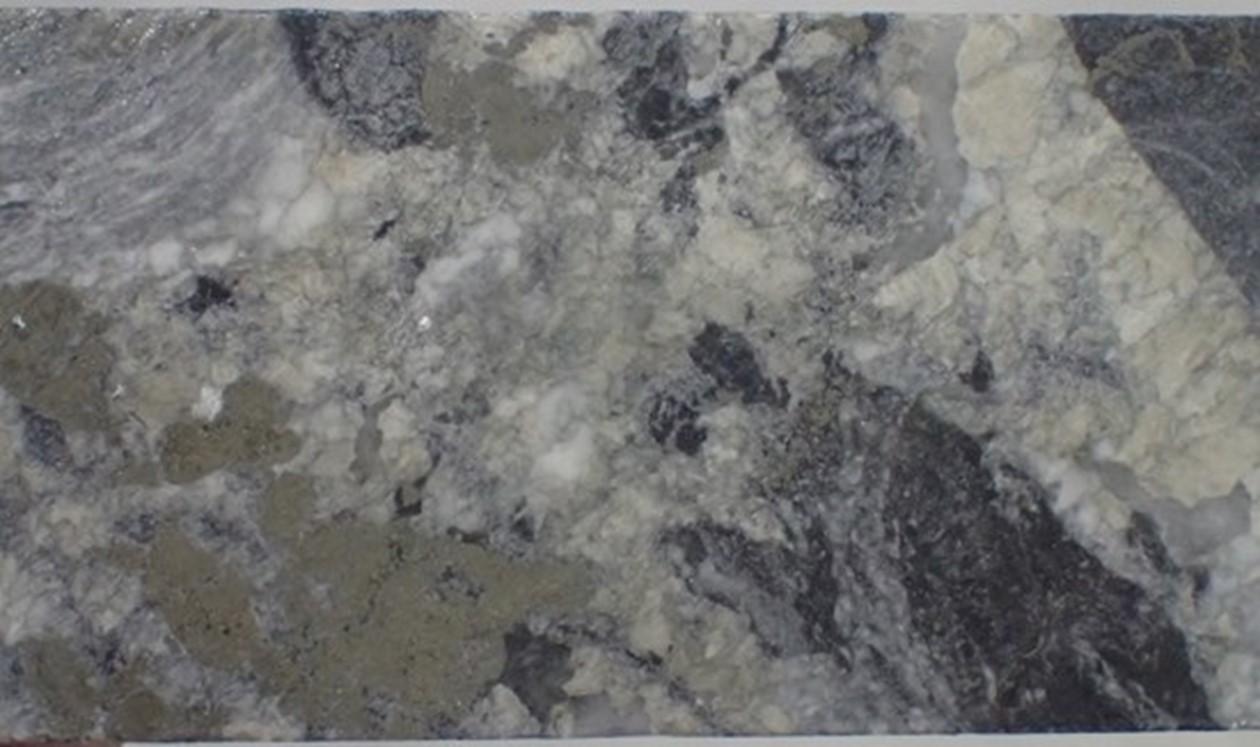

Plate 2: Pyrite-Fe Carbonate-(quartz) zone at 2,045.7 m in TB-23-003W2, within interval grading 6.4 g/t Au.
NQ core, 47.6 mm diameter.

Next steps to support follow-up targeting and drilling at Telbel will include:

• Assessment of multi-element assays to allow better characterization of rock types and define pathfinder zonation (in progress);
• Detailed review of downhole EM results for TB-23-001 and -002 and their respective wedges, and completion of the downhole EM survey for TB-22-003 and TB-23-003W2 (pending) to allow determination of continuity for sulfide zones;
• Surface mapping of the intersection between the Harricana and Joutel Deformation Zones east of TB-22-002A (in preparation); and
• Develop and refine follow-up proposed wedge drill holes for next phase of drilling.

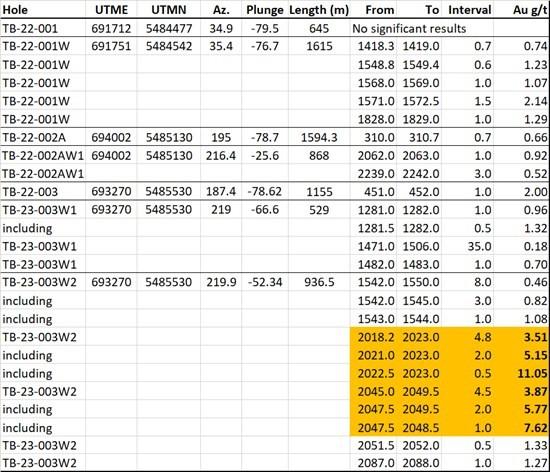

Table 1: Complete Assay Results from the First Phase Deep Drilling Program at Telbel (Joutel)

Note: All reported intercepts are downhole core lengths. True widths will vary depending on hole plunge, but for intercepts in TB-23-003W2 true width is estimated at approximately 85% of downhole length.

Qualified Person

The scientific and technical data contained in this press release was reviewed and prepared under the supervision of Fred Speidel, M. Sc., P. Geo., Vice-President Exploration of Maple Gold. Mr. Speidel is a Qualified Person under National Instrument 43-101 Standards of Disclosure for Mineral Projects. Mr. Speidel has verified the data related to the exploration information disclosed in this press release through his direct participation in the work.

Quality Assurance and Quality Control

The Company implements strict Quality Assurance (“QA”) and Quality Control (“QC”) protocols at Telbl covering the planning and placing of drill holes in the field; drilling and retrieving the NQ-sized drill core; drill hole surveying; core transport; core logging by qualified personnel; sampling and bagging of core for analysis; transport of core from site to the Val d’Or, Québec ALS laboratory; sample preparation for assaying; and analysis, recording and final statistical vetting of results. Check assays for gold will be done on a sample subset at AGAT laboratory in Val d’Or. For a complete description of protocols, please visit the Company’s QA/QC webpage at www.maplegoldmines.com.
