Lomiko Metals Inc. (TSX-V: LMR) is pleased to announce the seventh round of analytical results from the infill and extension exploration drill program at its La Loutre Graphite property, located approximately 180 kilometres northwest of Montréal in the Laurentian region of Québec. The La Loutre graphite project site is located within the Kitigan Zibi Anishinabeg First Nations territory.
Belinda Labatte, CEO and Director stated: “We are pleased to see significant intervals encountered in the second batch of results from the Battery Zone, including 10 holes (LL-22-60 to 69) in the south end of the Battery Zone. The assay results further validate the continuity and quality of the mineralization. The best interval of 6.00% Cg over 45.0m from 55.0 to 100.0m is in hole LL-22-062 including 7.41% Cg over 33.0m from 65.5 to 98.5m. We look forward to receiving the results from the remaining 10 holes in the Battery Zone.”
Assay results from the second 10 of 26 holes drilled at Battery Zone:
The drilling was supervised by Québec-based, independent geological consultant Breakaway Exploration Management Inc. and was operated under ECOLOGO requirements and compliance protocols, as Lomiko is ECOLOGO certified. Please see the press release issued on March 23, 2022 for more details about Lomiko’s ECOLOGO certification.
The drill program at La Loutre was initiated on May 15, 2022, with the goal to further define the deposit, provide the data needed to increase confidence in the mineral resource and build on the results of the positive Preliminary Economic Assessment for the La Loutre project as announced in the Company’s July 29, 2021, press release. Lomiko has retained InnovExplo Inc, a Quebec-based independent consulting firm specializing in geology, resource estimation, mining engineering and sustainable development, to prepare an updated NI 43-101 compliant resource estimate for the La Loutre project following the completion of the 2022 drill program.
The assay results reported in this press release are for 10 holes drilled along the southwest margin of the Battery Zone. These holes were drilled to confirm results of previous drilling and provide better detail in this part of the Battery deposit. Please refer to Table 1 for the weighted averaged graphitic carbon-bearing drill intersections (not true thickness) and Table 2 and Figure 1 for the collar locations referred to in this press release.
Significant intervals of graphite mineralization were intersected in all 10 holes. The best intersection was 6.00 per cent graphitic carbon (“% Cg”) over 45.0 metres (“m”) from 55.0 to 100.0m in hole LL-22-062 including 7.41% Cg over 33.0m from 65.5 to 98.5m. These drill results generally show that the graphite intervals along the western margin, although consistent, are narrower and contain less graphite relative to the center of the Battery zone located further to the northeast, which was expected based on the previous drilling.
Generally, it was noted that the graphite mineralization intersected in the Battery zone is visually more coarse-grained than the graphite mineralization intersected at the recently drilled EV Zone.
|Table 1: Weight averaged graphitic carbon-bearing drill intersections (not true thickness)|
|Hole||From m||To m||Int. m||% Cg||Notes|
|LL-22-064||104.5||115.0||10.5||4.08||Open above 104.5m; additional sampling underway|
|LL-22-066||16.0||20.5||4.5||4.58||Open above 16.0m; additional sampling underway|
|102.5||108.5||6.0||5.18||Open above 102.5m & below 108.5m; additional sampling underway|
|LL-22-067||11.0||15.5||4.5||4.68||Open above 11.5m; additional sampling underway|
Table 2: Drill Hole Collar Locations (UTM NAD 83, Zone 18)
QAQC and Analytical Procedures
The drill core was logged and marked for sampling by a professional geologist. All the core was photographed as part of the logging procedure. Core samples were collected by splitting each sample interval in half lengthwise with a hydraulic core splitter. One half of the interval was returned to the core box, and the other half was placed in a plastic bag with a tag. The tag number was marked in indelible ink on the outside of the bag, and the bag was sealed with a plastic tie-wrap. One certified reference material standard and one blank were included in each batch of 21 samples. For shipping, samples were placed in rice bags that were individually sealed with numbered, tamper-proof security tags. The rice bags were then placed on wooden pallets, secured with plastic wrapping, and delivered by truck to Manitoulin Transport Inc. for shipping to Activation Laboratories Ltd. in Ancaster, Ontario.
At Actlabs the samples were crushed to 80% passing 2mm and then riffle split to a 250g sub-sample that was pulverized to pulp 95% passing 105μm (Actlabs Code RX1). The sample pulps were then analyzed for graphitic carbon (“Cg”) by mild hydrochloric acid digestion followed by combustion in an infrared induction furnace (Actlabs Code 8Cg). Actlabs is accredited under ISO 9001:2015 registration and is independent of the Company.
The technical content presented in this press release was reviewed by Mark Fekete, P.Geo. who actively participated in the La Loutre drill program as an independent consultant to the Company as the “Qualified Person” as that term is defined under National Instrument 43-101 – Standards of Disclosure for Mineral Projects.
About Lomiko Metals Inc.
Lomiko Metals has a new vision and a new strategy in new energy. Lomiko represents a company with purpose: a people-first company where we can manifest a world of abundant renewable energy with Canadian and Quebec critical minerals for a solution in North America. Our goal is to create a new energy future in Canada where we will grow the critical minerals workforce, become a valued partner and neighbour with the communities in which we operate, and provide a secure and responsibly sourced supply of critical minerals.
In addition to La Loutre, Lomiko is working with Critical Elements Lithium Corporation towards earning its 70% stake in the Bourier Project as per the option agreement announced on April 27th, 2021. The Bourier project site is located near Nemaska Lithium and Critical Elements south-east of the Eeyou Istchee James Bay territory in Quebec which consists of 203 claims, for a total ground position of 10,252.20 hectares (102.52 km2), in Canada’s lithium triangle near the James Bay region of Quebec that has historically housed lithium deposits and mineralization trends.
About the La Loutre Graphite Project
The Company holds a 100% interest in its La Loutre graphite development project in southern Quebec. The La Loutre project site is located within the Kitigan Zibi Anishinabeg (KZA) First Nations territory. The KZA First Nations are part of the Algonquin Nation and the KZA territory is situated within the Outaouais and Laurentides regions. Located 180 kilometres northwest of Montreal, the property consists of one large, continuous block with 76 mineral claims totalling 4,528 hectares (45.3 km2).
The Property is underlain by rocks belonging to the Grenville Province of the Precambrian Canadian Shield. The Grenville was formed under conditions that were very favourable for the development of coarse-grained, flake-type graphite mineralization from organic-rich material during high-temperature metamorphism.
Lomiko Metals published a July 29, 2021 Preliminary Economic Estimate (PEA) which indicated the project had a 15-year mine life producing per year 100,000 tonnes of graphite concentrate at 95% Cg or a total of 1.5Mt of graphite concentrate. This report was prepared as National Instrument 43-101 Technical Report for Lomiko Metals Inc. by Ausenco Engineering Canada Inc., Hemmera Envirochem Inc., Moose Mountain Technical Services, and Metpro Management Inc., collectively the Report Authors.

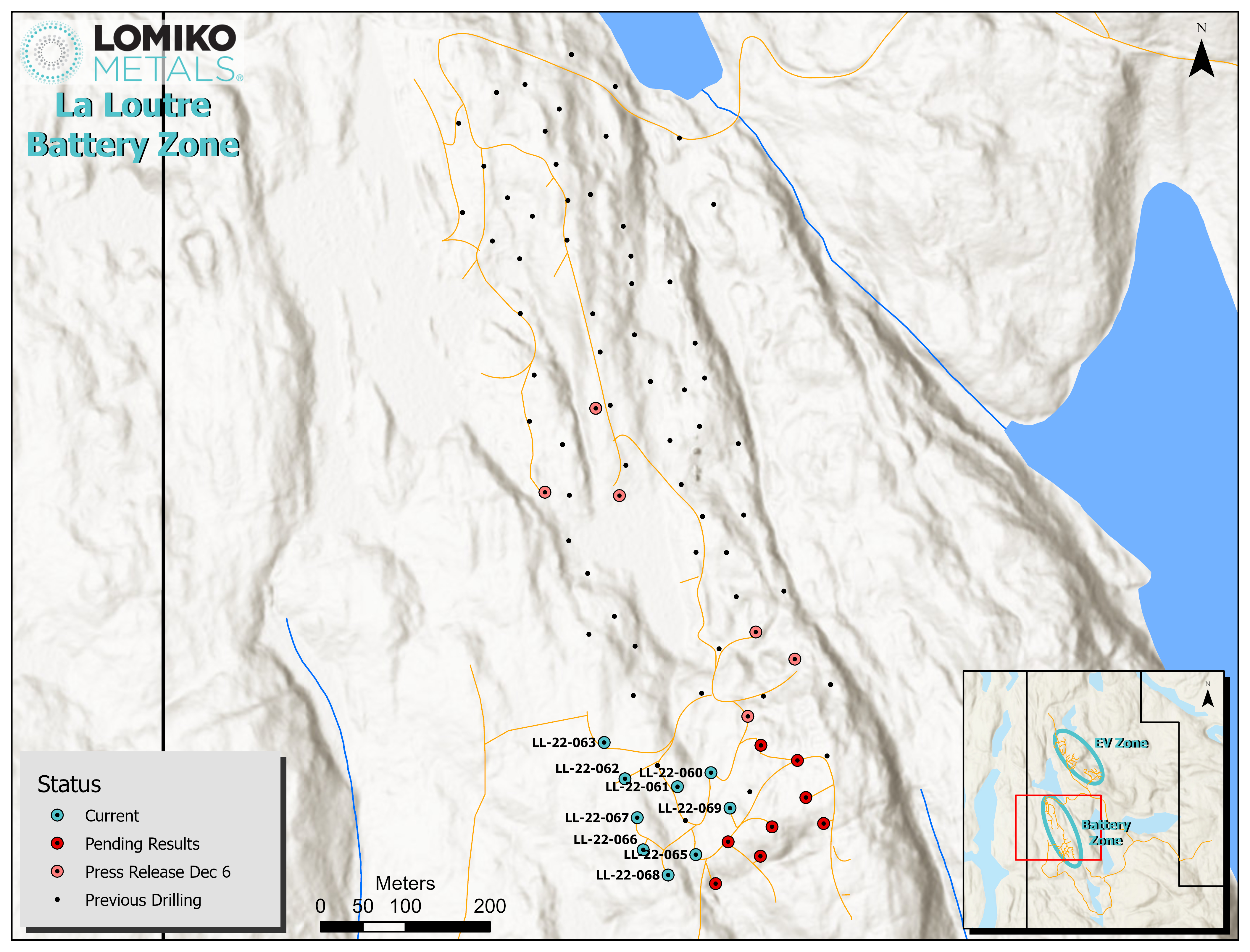

Figure 1 : Battery Zone Drill Hole Locations (Graphic: Business Wire)
